829AN00129A

DANFOSS Gestuurde terugslagklep

NG10/Cetop 3

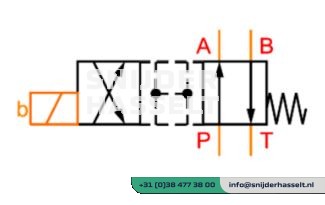

VALVE TYPE: DG (DG) DIRECTIONAL CONTROL VALVE WITH SUB PLATE MOUNTED

OPERATION: 4 (4) SOLENOID OPERATED

PRESSURE RATING: V (V) 315 BAR AT PORTS A, B AND P

INTERFACE: -5 (5) ISO-4401 SIZE 05

SPOOL TYPE: -0 (0) OPEN CENTER (ALL PORTS)

SPRING ARRANGEMENT: A (A) SPRING OFFSET TO A. SINGLE END.

BUILD ORIENTATION: _ (0) STANDARD BUILD

SPOOL SHIFT CONTROL: _ (0) UN NOTCHED SPOOL ( JUST FOR AC MODELS ONLY )

MANUAL OVERRIDE: _ (0) PLAIN OVERRIDE IN SOLENOID ENDS ONLY

SOLENOID ENERGISATION: - (0) STANDARDARD ARRENGEMENT FOR ANSI (SOLENOID A TO GIVE FLOW P TO A)

SOLENOID IDENTIFICATION: M (M) FLAG WITH STANDARD BUILD AS PER ANSI B93 9

SPOOL MONITORING SWITCH: _ (0) NO SPOOL POSITION MONITORING SWITCH

COIL TYPE: -U (U) ISO4400, DIN43650 CONNECTOR

COIL VOLTAGE: -H (H) 24 VDC 38 WATT

TANK PORT RATING: 7    (7) 210 BAR TANK PRESSURE RATING

DESIGN CODE: -22 (22) DESIGN NUMBER

SPOOL DAMP ORIFICE: _ (0) OMIT IF NOT REQUIRED

SPECIAL FEATURE: _ OMIT FOR STANDARD
